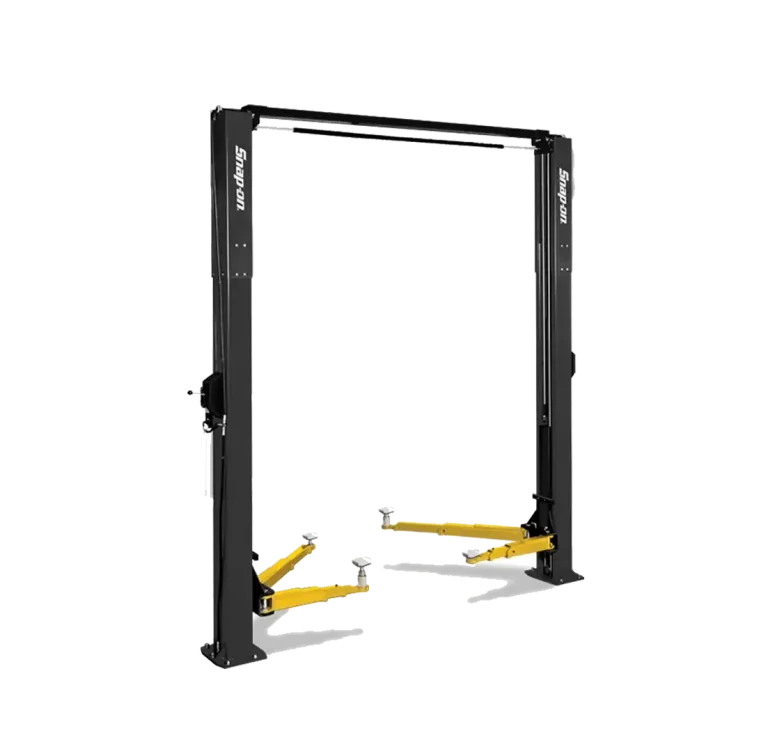

10K (4.5T) 2 POST LIFT
WORKSHOP ESSENTIAL
10K (4.5T) 2 POST LIFT
EELR365AKS4
Productivity, performance and value. Snap-on 10K 2-Post general purpose lifts are packed with premium features: industrial strength columns, low-friction lift carriage slides, low-wear components with plated arm pins, greaseable arm pin supports, steel pulleys, overhead safety shut-off and more. Vehicles can be positioned and lifted symmetrically or asymmetrically.
FEATURES
- 3-Stage front arms and 2-Stage rear arms provide a wide arm sweep for flexibility in the same service bay. Maximise your reach to service a wide range of vehicles
- Double telescoping adjustable screw lifting pads with rubber contact surface for quick and easy vehicle setup
- Single point safety lock release system
- Padded overhead safety shut-off bar for maximum vehicle clearance
- Rise Height (Screw Pads Highest Position) 2000mm
- Overall Height (Adjustable) 3748mm / 3494mm, Width 3347mm
- Drive-Thru Clearance 2499mm
- Floor to Overhead Switch 3568mm / 3314mm
- Short Arm Reach 553 ― 998mm, L ong Arm Reach 971 ― 1407mm
- Screw Pad Height 109 ― 199mm
- Inside of Columns 2800mm
- Ceiling Height Required 3785mm
- Smooth power delivery through industrial 3 phase motor
