12K (5.4T) 4-POST ALIGNMENT LIFT
DON’T TURN AWAY A JOB
12K (5.4T) 4-POST ALIGNMENT LIFT
EELR369AAU1

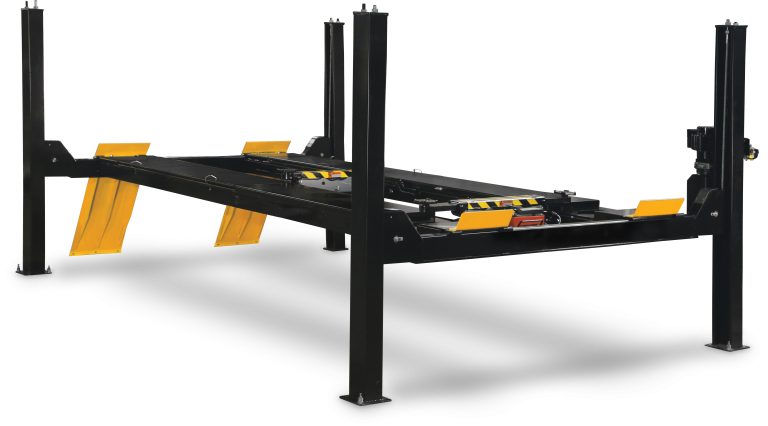

The Snap-on 12K 4 post alignment lift gives you 5.4T of heavy-duty lifting capacity in a compact and stable lift design, without the need for multiple lifts. Whether it is a small car or a heavy-duty 4×4, the 12K four-post alignment lift has four-wheel alignment capabilities that cover vehicle Wheelbase 2248 mm through to 4026 mm.
FEATURES
- Industry proven; brake formed front columns and traverse beam design, spreads critical load forces over longer/larger supporting areas
- 5106mm runway length accommodates the growing customer carparc
- Closed front design maintains a steady and shake free lift for advanced alignment measurement accuracy
- 524mm wide runways for a wide range of vehicles
- 187mm ultra-low-profile design
- 4-Wheel Alignment capabilities
- 2070mm long flush mounted rear slip plates
- Integrated and adjustable turn plate pocket to assist in levelling turn plates, offering smooth transiting
- Fully raised height of 1981mm to the runway surface, with 14 alignment level locking positions for added safety
- Locking ladders mount through the traverse beams – ensures safety lock engagement
- Filter / Regulator / Lubricator (FRL) provide clean and lubricated air supply to lift and jack systems, improving reliability and reducing maintenance
- Standard with one 6K roller jack
- 4 Wheel Alignment Wheelbase: Min. 2248 mm Max. 4026 mm
- General Service Wheelbase 4646 mm
- Overall Length 6386 mm, Width 3423 mm
- Distance Between Runways 1016/1092 mm
- Smooth power delivery through industrial 3 phase motor
