8K (3.5T) DOUBLE SERVICE SCISSOR
GENERAL AND TYRE SERVICE

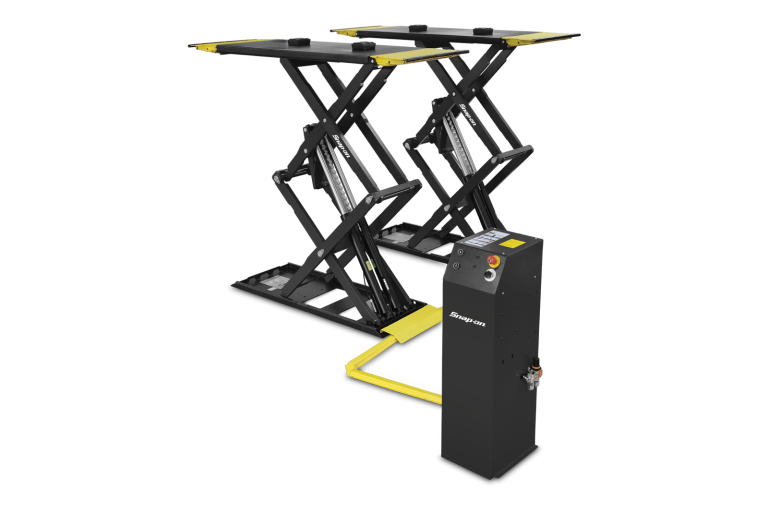

8K (3.5T) DOUBLE SERVICE SCISSOR
EELS302AAU3
Snap-on engineered our 8K (3.5T) capacity scissor lift with efficiency and productivity in mind. Our EELS302 can easily lift all makes and models (within rated capacity) with a synchronised hydraulic system. The lift also offers free access all around the lifted vehicle and between platforms, with a cross-member free design providing an uncluttered and hazard-free work area.
FEATURES
- Master/Slave hydraulic synchronisation system
- Lowered height of just 116mm
- Wide 651mm drive over lifting platforms for safe loading ∙Raised height of 1,905mm ensures comfortable work level
- Adjustable platform length via locking ramps, from 1480mm to 1810mm to 2140mm, accommodates longer wheelbase vehicles
- Max Lifting time at nominal load 47sec
- Platform length 1480 mm, width 651 mm
- Ramp length 330 mm
- Overall Platform length 2140 mm
- Width between platforms 533 ― 736 mm
- Smooth power delivery through industrial 3 phase motor”
